Beyond Standard Pipes: Solving the Engineering Headaches of Complex FRP Profiles

Let’s be honest: pulling a standard round rod or a simple square tube is easy. But when your project requires a multi-cavity structural profile with varying wall thicknesses, the "easy" part ends. Many manufacturers struggle with internal stress cracks, resin-rich areas, or profiles that simply won't stay straight. At Henan Zhongsheng Composite Materials Co., Ltd, we believe these aren't material failures—they are engineering failures in the mold design.

The "Thin-to-Thick" Trap in Pultrusion

The biggest challenge in custom FRP structural shapes is uneven curing. A profile with a 10mm base and a 3mm flange will cure at different rates. If your pultrusion die isn't designed with independent heating zones, the thin section over-cures (becoming brittle) while the thick section remains under-cured (losing strength). Our engineering team at Henan Zhongsheng uses thermal simulation to map out exactly how the heat flows through the steel into the resin.

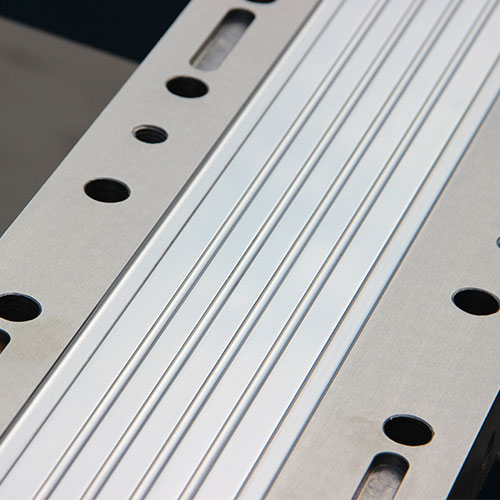

How We Build Molds for "Impossible" Shapes

To ensure a smooth production run on our Frp pultrusion machine, our custom dies follow a strict "No-Compromise" manufacturing process:

• Differential Heating Zones: We don't just wrap a heater around a block of steel. We strategically place thermocouples to manage the exothermic reaction of the resin, especially in complex junctions.
• Tapered Entry Geometry: To prevent fiber breakage in intricate shapes, our mold entries are precision-tapered to compress the glass reinforcement gradually.
• High-Chrome Mirror Finish: Friction is the enemy of complex shapes. By mirror-polishing every internal surface of the die, we reduce the pulling force, which prevents surface tearing on thin-walled sections.

Case Study: Custom Profiles for 5G Infrastructure

Recently, a client needed a specialized FRP shroud for 5G antennas. It required RF transparency, extreme thinness for weight reduction, but high rigidity for wind resistance. By utilizing our precision pultrusion dies and a custom vinyl ester resin mix, we delivered a profile that met a ±0.05mm tolerance—something traditional composite shops struggled to achieve.

Why Customization is the Future of Composites

"Precision in the mold translates to reliability in the field. If the die isn't perfect, the profile never will be."

Let’s Talk About Your Specific Design

Don't let a complex drawing stop your project. Whether you are in the infrastructure, telecommunications, or chemical industry, Henan Zhongsheng Composite Materials Co., Ltd has the technical expertise to turn your blueprints into high-performance reality.
