Product Overview of Crawler Driven GFRP Rebar Machine

The Crawler Driven GFRP Rebar Machine (internationally designated as an automated caterpillar haul-off composite rebar production line) is a premier industrial system engineered by Henan Zhongsheng. Specialized for the continuous manufacturing of φ4mm - φ35mm high-tensile fiberglass reinforcing rods, this production plant replaces outdated reciprocating hydraulic setups with heavy-duty twin-track crawler drives. This provides an uninterrupted, perfectly linear pulling vector mandatory for stabilizing multi-line fiber-resin cross-linking and securing uniform helical rib texturization.

Figure 1: Heavy-duty caterpillar driven GFRP rebar production line details

Advanced Multi-Line Configurations and Caterpillar Drive Architecture

To maximize factory output, Zhongsheng provides turnkey production matrices specialized for 2-Line and 5-Line simultaneous high-speed manufacturing setups. The continuous system comprises six heavily integrated sub-systems:

• Assembled Yarn Rack: Robust steel-welded creel framework holding up to 300 rolls, integrated with localized yarn mechanical tensioning devices to completely eliminate slack fiber loops.
• Pneumatic Resin Tank: Fabricated from industrial stainless steel with integrated pneumatic-controlled dipped yarn pressing bars, ensuring simple, fast, and 100% homogenous resin matrix wetting.
• Synchronized Winding Device: Driven by synchronized VFD speed regulation, this unit wraps helical textured ribs or sand-coating matrices evenly across the drawing rods.
• Precision Curing Oven: Split insulation box design utilizing cast aluminum heaters. The curing temperature is precisely split into up to 5 thermal zones monitored by digital PID controllers.
• Twin-Track Crawler Haul-off Unit: The engineering core utilizing continuous high-hardness rubber-padded caterpillar tracks driven by synchronized VFD motors, providing endless linear traction without clamping reset intervals.
• Automated Cut-Off & Stacking: High-speed synchronized traveling flying saw executing vertical shear cuts at precise pre-set lengths without halting upstream line speed.

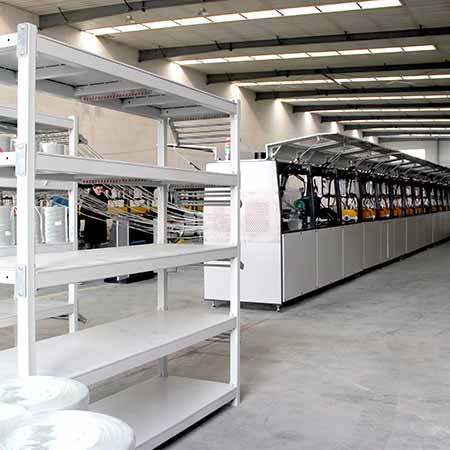

5-Line GFRP Rebar Machine - Factory Plant Layout & Setup

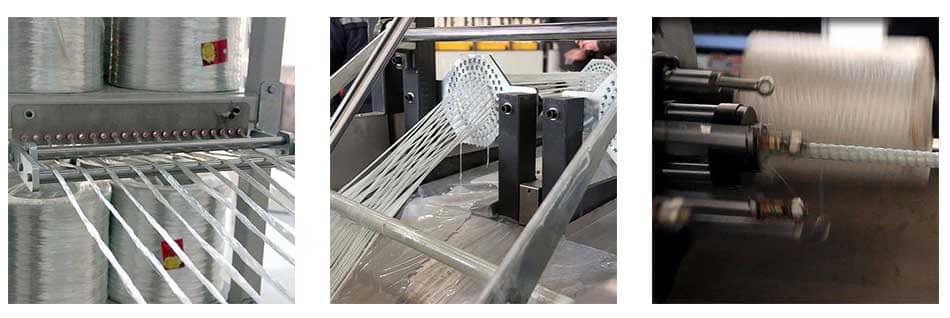

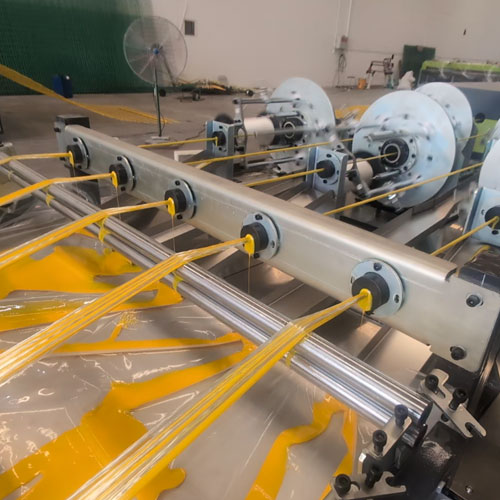

Figure 2: Automated multi-line composite rebar winding and curing details

5-Line GFRP Rebar Production Line - On-Site Installation & Commissioning

5-Line GFRP Rebar Production Line - Running Operation

4-Line/Parallel Composite Rebar Production Live

2-Line High-Precision GFRP Rebar Production Live

Technical Specifications: 2-Line vs 5-Line Production Matrices

The following multi-model engineering data table presents the verified, certified parameters of Zhongsheng's core ZSXWJ2 and ZSXWJ5 manufacturing lines:

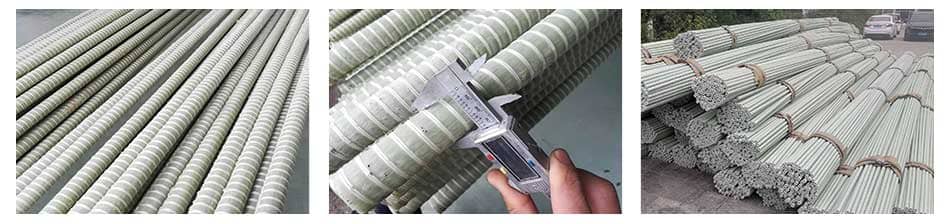

Figure 3: Finished high-tensile fiberglass rebar profiles ready for shipment

Industrial Environmental Compliance & Operational Exhaust

To satisfy rigorous international environmental audits and safeguard plant labor health, the ZSXWJ2 model incorporates a fully enclosed resin bath and pre-shaping architecture. The unit is outfitted with an industrial exhaust fan mounted on top of the enclosure framework, delivering highly effective odor reduction and hazardous polymer fume extraction. This allows factory owners to deploy high-output continuous lines in enclosed industrial workshop zones without triggering volatile organic compound (VOC) compliance penalties.
