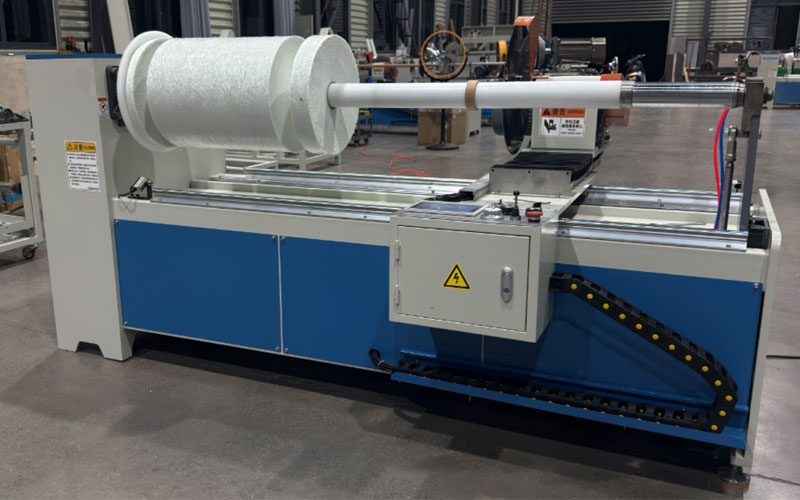

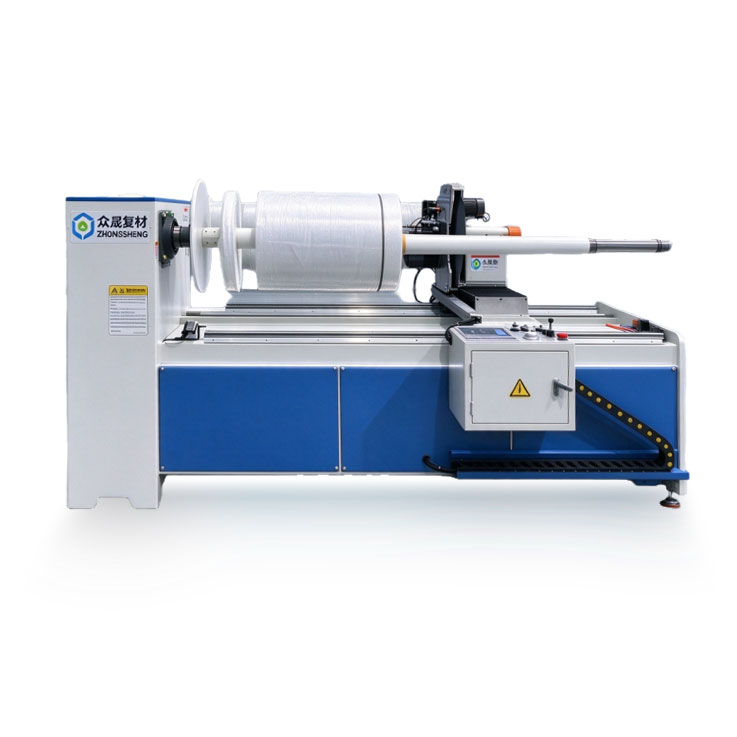

1. High-Precision Automated Processing: Automatic Fiberglass Mat Roll Slitting Machine

In pultrusion, pipe winding, resin transfer molding (RTM), and structural panel manufacturing, processing raw reinforcement materials into exact widths with clean edges is essential for line stability and material cost reduction. The Automatic Fiberglass Mat Roll Slitting Machine developed by Henan Zhongsheng Composite Materials Co., Ltd. offers an advanced, high-precision solution capable of slitting fiberglass rolls with an outstanding accuracy within ±0.3 mm.

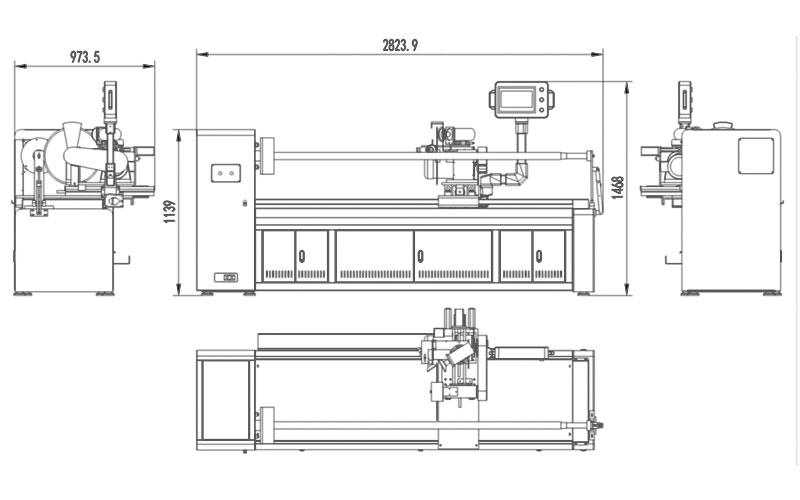

Engineered as a robust 870 kg industrial platform, this Automatic Fiberglass Mat Cutting Machine incorporates dual Kinco servo drives, Xinjie XD3 PLC automation, and dual 2.2 kW integrated gear reduction motors for both the main spindle and cutter shaft. Featuring 3205 and 1605 high-precision ground ball screws, double frequency inverters for stepless speed regulation, and an MCGS 7-inch WiFi-enabled touchscreen panel, it delivers consistent material tension and effortless operation in continuous factory environments.

2. Material Versatility & Automated Sharpening Mechanism

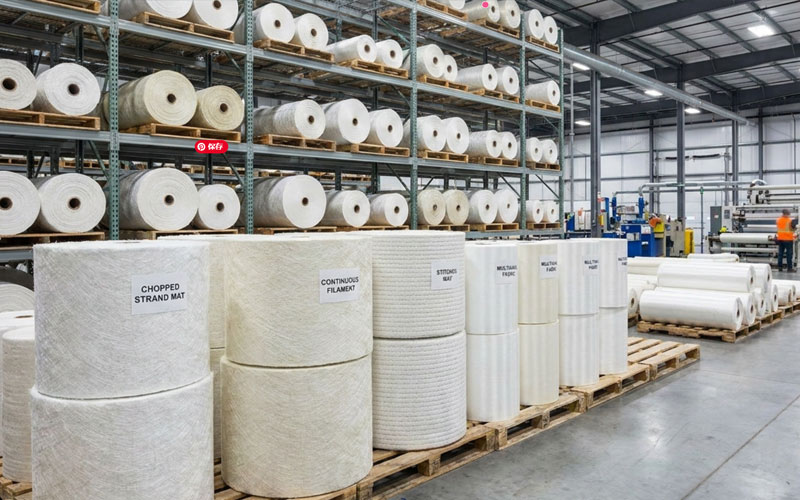

Equipped with a flexible cutter positioning system and a minimum slitting width of 30 mm, this versatile Fiberglass Mat Cutting Machine seamlessly processes a full spectrum of composite reinforcement materials up to 1800 mm roll width and 350 mm roll diameter (customizable):

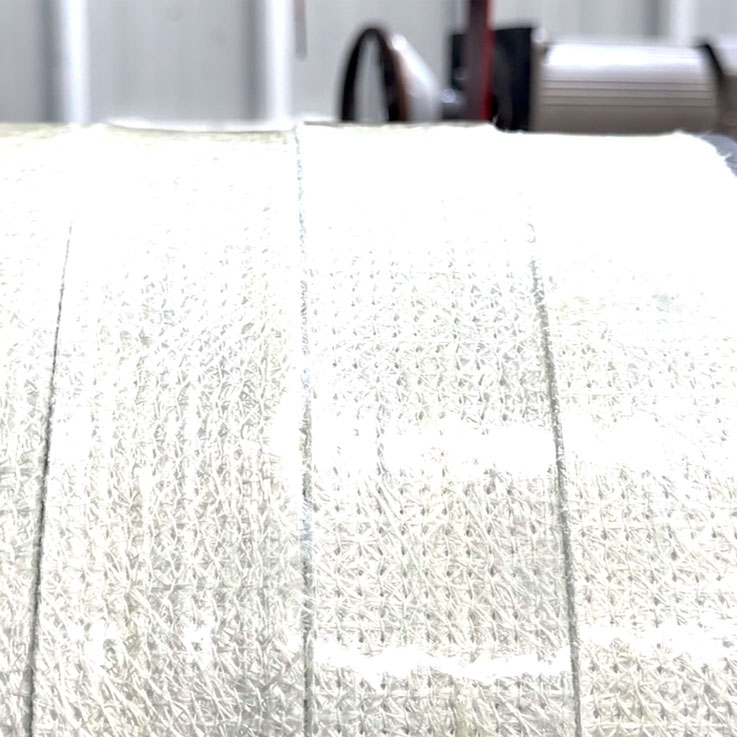

• Fiberglass Chopped Strand Mat (CSM): Slits standard non-woven chopped strand mats into uniform narrow rolls for pultrusion die feeding without edge pullout.
• Fiberglass Continuous Filament Mat (CFM): Processes dense continuous filament mats smoothly without disrupting fiber continuity or causing mat tearing.
• Stitched Fiberglass Mat & Combination Mat: Easily cuts through heavy multi-layer stitched and combination mats with high structural density.
• Multiaxial & Biaxial Fiberglass Fabrics: Delivers razor-sharp, fray-free straight cuts on technical 0°/90° biaxial and multiaxial (+45°/-45°) woven reinforcement fabrics.

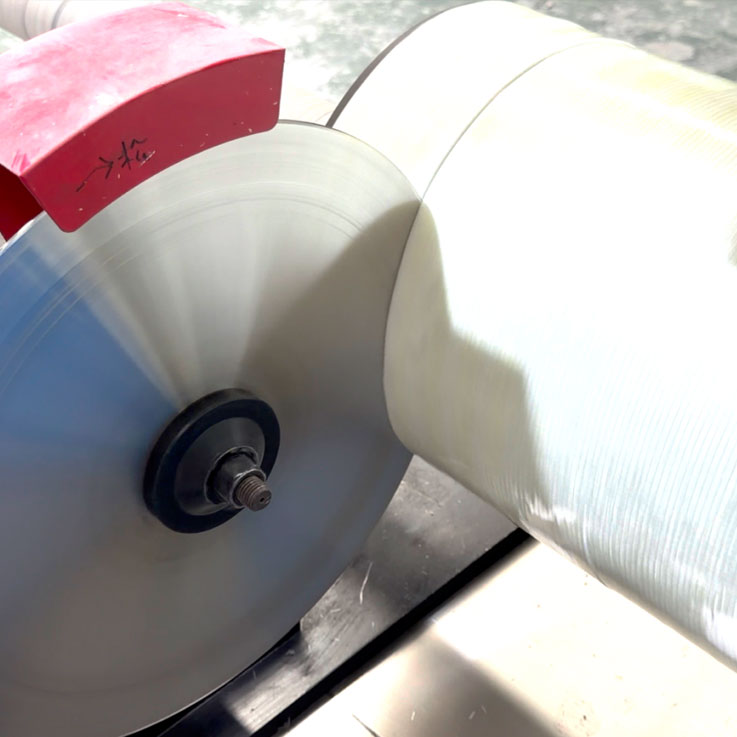

To eliminate manual tool maintenance and downtime, the machine integrates an automatic double-sided blade sharpening system. As abrasive fiberglass wears the cutting edges over time, the inline sharpening mechanism restores blade keenness automatically during operation, ensuring fray-free, dust-minimal cuts across millions of meters.

3. Key Engineering Features & Technical Hardware

Built with premium electrical and mechanical components, the Fiberglass Mat Roll Slitting Machine offers distinct technical advantages for modern composite fabricators:

• ±0.3 mm High Slitting Precision: Powered by 3205 and 1605 ground ball screw assemblies and Kinco dual servo positioning for exact narrow roll dimensions.
• Dual 2.2 kW Gear Reduction Motors: Dedicated integrated gear reducer motors drive the main spindle and cutter shaft, providing high torque at stable low-noise speeds.
• Smart HMI & Remote Connectivity: The MCGS 7-inch color touchscreen features intuitive recipe storage and WiFi connectivity for remote diagnostics and parameter monitoring.
• Versatile Roll Handling: Standard 76 mm (3-inch) core shaft compatibility accommodates master rolls up to 1800 mm wide with customizable maximum diameters and widths.

Turnkey Equipment & Technical Support by Zhongsheng

Henan Zhongsheng Composite Materials Co., Ltd. provides full-chain manufacturing services—including custom core shaft configurations, spare sharpening assemblies, localized electrical voltage adaptation (380V / 3-phase standard), and global technical support.
