Turnkey FRP Rebar, Mesh
& Bent Shapes Production Solution

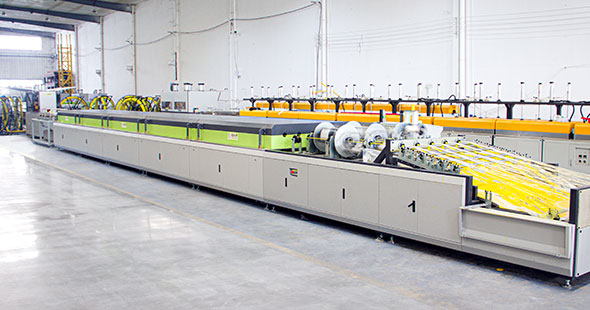

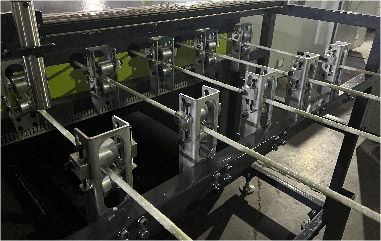

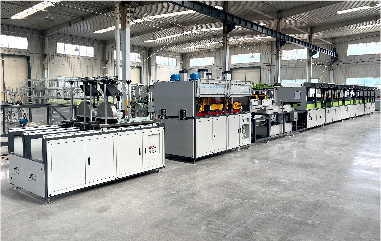

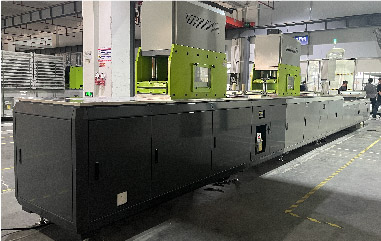

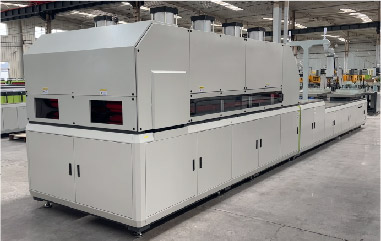

Our advanced high speed FRP rebar machine and heavy-duty FRP rebar pultrusion line achieve a stable manufacturing speed of 1.5 to 2.5 meters per minute per strand. Operating this 5-strand GFRP rebar production line simultaneously yields a combined total daily output of up to 15,000–18,000 meters per 8-hour shift, making it the most efficient fiberglass rebar machine configuration for global factories looking for premium GFRP rebar machine setups.

To ensure absolute structural uniformity and optimal tension control across the entire frp rebar production line, we strongly recommend running the same diameter or closely matching diameters concurrently. Processing drastically different sizes simultaneously on a multi-strand frp fiberglass rebar production line or standard fiberglass production line may cause uneven pulling profiles and vary the polymer curing cycle.

This heavy-duty composite rebar manufacturing equipment and commercial-grade fiberglass rebar making machine are perfectly optimized for high-volume sizes ranging from Ø 4mm to 16mm across all 5 lines. For larger premium structural diameters (such as Ø 25mm to 32mm), this industrial gfrp rebar making machine and Fiber Glass rebar machine can be easily adjusted to run in single-strand or double-strand high-pull mode.

Our industrial-grade FRP rebar pultrusion machine and modern composite rebar producion line seamlessly support multiple polymer matrices including Vinyl Ester, Epoxy, and Polyurethane resins. For reinforcement fibers, the frp rebar pultrusion machine handles E-glass/Alkali-free fiberglass rovings, high-strength Carbon fiber, and premium Basalt fiber without requiring complex hardware modifications.

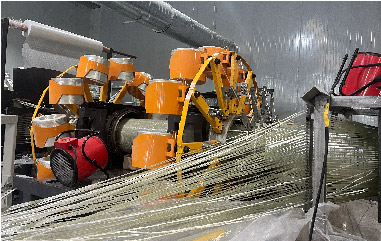

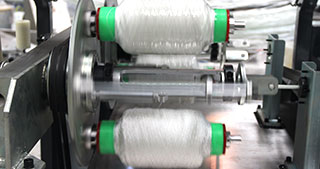

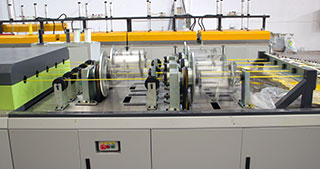

The system integrates a high-efficiency fiberglass rebar winding machine module for helical wrapping and a synchronized FRP rebar coating machine unit. The coating module applies an even layer of quartz sand onto the uncured compound simultaneously, providing excellent surface roughness to maximize concrete bonding performance.

Engineered with a modular, user-friendly quick-change clamping system, shifting sizes is rapid. A trained operator can complete the swap, alignment, and secure lock of all 5 production units of the fiberglass rebar mould / pultrusion die within 1 to 2 hours, drastically minimizing machine downtime.

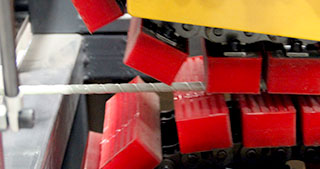

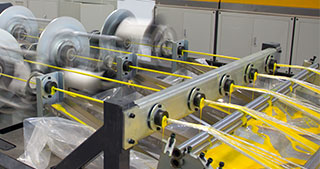

Due to the centralized smart PLC control desk and the automated sensory feedback on the heavy-duty composite rebar pulling machine, only 1 skilled operator is required to monitor the entire system once fibers are routed through the creel guide into the resin bath, delivering immense savings on labor overhead.

As a premium FRP rebar machine manufacturer, we offer highly competitive, direct commercial rates. To get an exact FRP rebar machine price sheet tailored to your production capacity and customized multi-strand configurations, simply contact our engineering support team for a formal factory quotation.

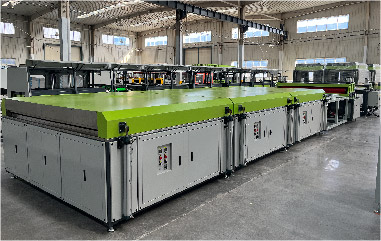

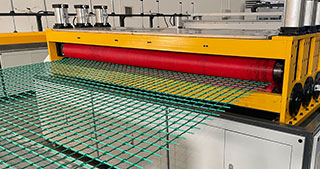

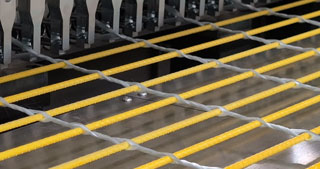

Grid spacing changes on our FRP rebar mesh machine are entirely digital. Operators simply input the desired cross-mesh parameters (e.g., 100x100mm, 150x150mm, or 200x200mm) via the touchscreen CNC controller. The automatic fiberglass rebar production line automatically configures the automated servo-driven feeding mechanisms without manual hardware replacement.

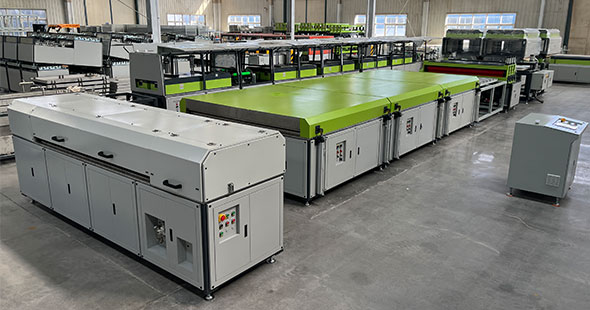

Our standard fiberglass rebar mesh production line accommodates maximum widths of 1.2 meters, 2.4 meters, and 3.0 meters. The built-in heavy-duty automated flying shear can cut customized lengths precisely up to 6 meters or more based on your structural civil engineering order sheets.

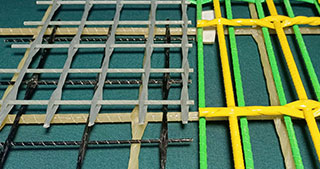

Yes. The heavy-duty structural cross-gripping assembly of our GFRP rebar mesh making machinery is equipped with specialized dual-texture adaptive clamps. This design handles sand-coated, wrapped-groove, and completely smooth composite rebars with equal efficiency, ensuring zero slip during processing.

Because composite materials cannot be welded like steel, our FRP rebar mesh welding machine (termed 'welding' by industry convention for automatic mesh assembly) utilizes an advanced high-precision CNC cross-clamping and chemical thermal bonding process. An integrated dispenser deposits precise amounts of highly chemical-resistant, fast-curing structural compound at the intersections, achieving high-strength bonding within seconds on the automatic composite rebar mesh line, delivering steel-like joint shear strength without damaging the glass fibers.

Yes, our advanced fiberglass grid production equipment can be configured as an FRP geogrid machine or an FRP wire mesh making machine. This versatility allows manufacturers to expand into civil geogrid markets and supply the mining sector with high-performance fiberglass rock bolt and mesh machine combinations.

We have premium high-efficiency fiberglass rebar mesh machine for sale. For comprehensive data regarding the automatic FRP rebar mesh machine price, detailed layouts of the FRP rebar mesh manufacturing process equipment, or to secure a quote from a top-tier FRP rebar mesh welding line supplier, please reach out to our global trade office.

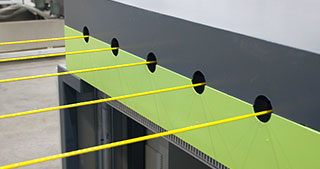

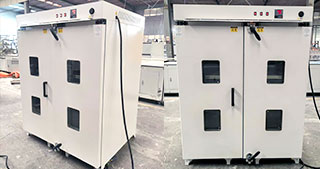

This is achieved through our proprietary online bending FRP pultrusion line and continuous FRP rebar bending machine technology. The fiber-matrix compound is manipulated and shaped into specified angles while it is still in its flexible, uncured state. The continuous bent structural profile then immediately enters a custom-engineered curing chamber to solidify into its final rigid state without compromising fiber orientation.

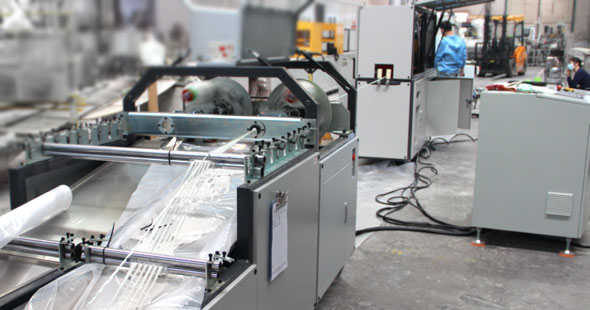

Our specialized FRP bent rebar machine and fiberglass bent rebar production line are highly versatile. The system natively manufactures open geo-profiles like FRP rebar L-shape / U-shape / C-shape machine components, as well as complex closed hoops via our advanced FRP rebar stirrup making machine module, which executes an automated overlap-joint thermal curing cycle.

Traditional secondary manual bending causes micro-cracks. By using our GFRP bent shapes production equipment and automated composite bent element machinery, the fibers remain continuous and unbroken along the radius. The bent corners maintain an exceptional strength retention rate of 75% to 85%, exceeding global civil infrastructure safety criteria.

Standard geometric shapes (such as 90-degree and 135-degree corners) are handled dynamically by programming the multi-axis CNC bending arms via the control terminal. For specific architectural layouts, our fiberglass corner rebar machine configuration, FRP curved rebar production line, and specialized fiberglass rebar hooks making machine allow operators to adapt rapidly by swapping low-cost bending guides and fixtures.

To retain optimal flexibility during continuous pre-cure reshaping on our automated continuous lines, the automatic inline bending machine perfectly supports industrial standard structural diameters from Ø 6mm up to 16mm while maintaining absolute fiber alignment.

Yes. Rebars and meshes manufactured using our automated GFRP rebar making machinery for sale fully comply with core international specifications, including ASTM D7957 (Standard Specification for Solid FRP Rebars), ACI 440.1R, and ISO 10406-1. We routinely supply technical data to help clients clear local laboratory audits easily.

We provide a comprehensive dual-layer support framework: We dispatch veteran field engineers overseas to manage structural physical assembly, wiring integration, and local resin formulation calibration. Simultaneously, we provide detailed digital interactive video guides and 24/7 video-conferencing technical service.

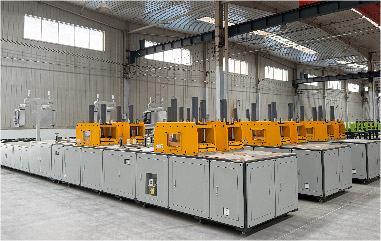

Yes. Upon contract confirmation, our engineering division delivers complimentary AutoCAD and 3D plant layout schematics tailored precisely to your building dimensions, mapping out optimized positioning for creels, baths, ovens, pulls, shears, and utility lines (power/exhaust).

The standard consumables include pultrusion die inner sleeves (hardened tool steel/carbide inserts), flying shear cutter blades, and ceramic fiber-guide nozzles. Every complete turnkey line ships with a complimentary 1-year spare parts package to ensure uninterrupted processing.

All industrial electrical cabinets, motors, and transformer circuits are built custom to order. We fully match your domestic industrial power grid specifications, whether it requires 380V/50Hz/3-Phase (Europe/Asia), 460V/60Hz (USA), or 220V/60Hz (Mexico).

The standard manufacturing, integration, and comprehensive factory dry-run testing cycle takes 45 to 60 working days from initial down payment and profile verification. We warmly welcome clients or third-party inspectors to witness pre-shipment trial runs at our facility.

Yes, absolutely. A major bottleneck for new composite plants is mixing the perfect resin matrix. As part of our comprehensive turnkey project service, our chemical engineers analyze your local factory's ambient temperature, average humidity, and available raw material supply chains. We then provide a customized chemical mixing matrix ratio (Vinyl Ester/Epoxy resin, catalysts, accelerators, and release agents) to ensure you roll out premium, structural-grade certified rebars right from the initial machine calibration phase.

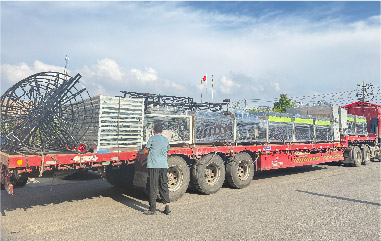

A standard high-capacity 5-strand FRP rebar pultrusion line integrated with automated cutting and post-processing modules typically requires one 40-foot High Cube (40HC) container. To withstand long-distance ocean freight and humid customs cross-docking, all critical CNC electronic control cabinets, high-precision pultrusion dies, and heavy-duty mechanical bearing joints undergo a rigorous industrial-grade anti-rust oil treatment followed by vacuum aluminum-foil barrier packaging with moisture desiccants. This guarantees your heavy machinery arrives at your loading dock in absolute pristine, factory-fresh condition.
