Dielectric Safety: High-Performance FRP Cable Trays for Critical Electrical Infrastructure

Dec / 19 / 2023

Precision-engineered non-conductive FRP cable management systems.

The Evolution of Electrical Safety: The Case for FRP

In modern industrial and commercial electrical systems, the choice of cable management is a critical safety decision. Traditional steel or aluminum trays, while functional, present inherent risks of electrical conductivity and corrosion-related failure. FRP cable trays (Fiberglass Reinforced Plastic) from Henan Zhongsheng represent a breakthrough in safety and efficiency. By combining high-modulus glass fibers with specialized resin matrices, we deliver a system that possesses the structural integrity of steel but functions as a total dielectric insulator.

1. The Core Advantages of Fiberglass Insulation

The "Fiberglass Insulation" factor in our cable trays isn't just a feature—it's a multi-layered safety barrier. Unlike metallic trays that require complex grounding systems, FRP is intrinsically safe:

I. Dielectric Strength & Shock Prevention

FRP is a natural insulator. In the event of a cable fault or insulation breach within the tray, FRP cable trays do not become "energized." This drastically reduces the risk of arc flash and lethal electrical shock to maintenance personnel, making them the gold standard for high-voltage substations and power plants.

II. EMI/RFI Transparency

For data centers and telecommunications hubs, electrical interference is a major concern. FRP is non-magnetic and transparent to electromagnetic and radio frequency interference, ensuring signal integrity for sensitive data cables without the need for additional shielding.

2. Technical Performance Comparison: FRP vs. Metal

To understand the long-term ROI of Henan Zhongsheng products, one must look at the performance benchmarks against traditional materials:

Engineering Property	Galvanized Steel / Aluminum	Zhongsheng FRP Cable Trays	Operational Impact
Electrical Conductivity	High (Requires Grounding)	Zero (Non-conductive)	Maximum personnel safety
Corrosion Resistance	Susceptible to Rust/Oxidation	Immune to Salts & Acids	Maintenance-free for 50+ years
Fire Performance	Deforms at high heat	Self-extinguishing (UL 94-V0)	Critical cable protection in fire
Weight Density	Heavy (Logistics intensive)	Ultra-Light (1/4 weight of steel)	Faster, lower-cost installation
Thermal Expansion	Significant (Requires joints)	Extremely Low	Structural stability in temp flux

3. Specialized Applications of FRP Systems

The resilience of FRP cable trays makes them the preferred choice for the world's most demanding environments:

Chemical & Petrochemical: Resistant to corrosive vapors and liquid spills that would disintegrate metal trays within months.
Offshore & Marine: 100% immune to saltwater spray and high-humidity oxidation on oil rigs and coastal facilities.
Wastewater Treatment: Withstanding the aggressive H2S gases prevalent in modern sanitation plants.
Infrastructure & Transit: Ideal for subway tunnels and bridges where moisture and stray currents are constant threats.

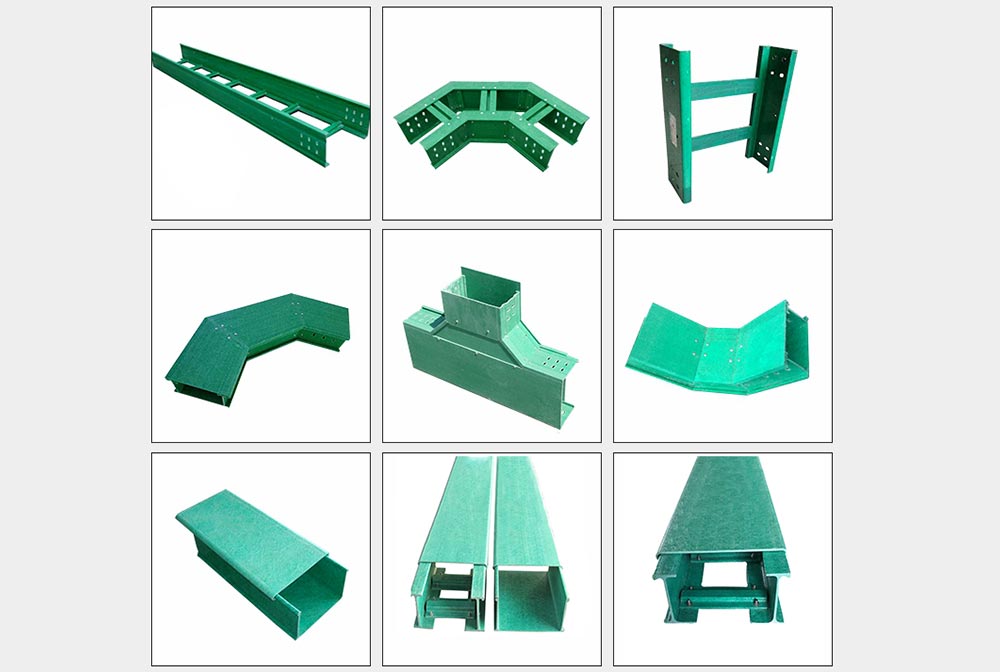

4. Quality & Customization at Henan Zhongsheng

With over 20 years of manufacturing excellence, Henan Zhongsheng utilizes a precision pultrusion process to ensure consistent wall thickness and glass-to-resin ratios. We offer diverse tray types to suit every project layout:

Ladder Type: For maximum airflow and heat dissipation in heavy power cable runs.
Trough/Solid Bottom: For full protection of sensitive communication and control cables.
Channel Type: For smaller cable volumes in confined spaces.

10 Professional FAQs: FRP Cable Tray Engineering

Q1: "Do FRP trays require any grounding at all?"
A: No. Because the material is non-conductive, grounding the tray itself is unnecessary. However, the metallic cables within the tray must be grounded according to local electrical codes.

Q2: "How do FRP trays handle extreme UV exposure in outdoor solar farms?"
A: We integrate high-grade UV inhibitors and a protective surface veil to prevent "fiber blooming," ensuring 30+ years of outdoor service even in high-solar regions.

Q3: "Can FRP cable trays support the same weight as steel?"
A: Yes. When designed according to NEMA FG-1 standards, our trays meet or exceed the load-bearing requirements of heavy-duty steel systems while being significantly lighter.

Q4: "What is the fire rating of your products?"
A: We offer systems that meet UL 94-V0 and ASTM E84 Class A flame spread ratings, ensuring the trays do not support combustion.

Q5: "How are FRP trays cut and joined on-site?"
A: They can be easily cut with standard carbide-tipped power tools. Joining is done via FRP splice plates and stainless steel hardware for maximum corrosion resistance.

Q6: "Is the fiberglass insulation safe for the environment?"
A: Absolutely. FRP is chemically inert and does not leach toxins into the ground or water, making it suitable for sensitive green building projects.

Q7: "Can these trays be used in sub-zero temperatures?"
A: Yes. Unlike PVC which becomes brittle, FRP maintains its structural integrity and impact resistance at temperatures as low as -40°C.

Q8: "Do you offer anti-static options?"
A: Yes. For explosive environments or cleanrooms, we can manufacture trays with conductive additives to safely dissipate static build-up.

Q9: "Are there different resin options for specific chemicals?"
A: Yes. We offer Polyester for standard use and Vinyl Ester for high-acid/aggressive chemical environments.

Q10: "How does the total installed cost compare to steel?"
A: While the material cost is higher than basic steel, the reduction in labor (no heavy lifting), lack of grounding requirements, and zero maintenance result in a lower Total Lifecycle Cost.

Secure Your Infrastructure with Zhongsheng

Partner with Henan Zhongsheng Composite Materials Co., Ltd. for your next electrical project. From custom dimensions to specialized resin systems, our team led by Jessica Huang provides the technical expertise and high-volume manufacturing capacity you need.
