Technical Data
Safety Redefined: The Engineering Behind FRP Ladder Rungs
In 2026, industrial safety standards have shifted focus from simple durability to "active protection." FRP/GRP ladder rungs (Fiberglass Reinforced Plastic) are the cornerstone of this shift. Unlike traditional steel rungs that rust or aluminum rungs that conduct electricity, pultruded fiberglass rungs provide a life-saving combination of chemical immunity and electrical insulation. At Henan Zhongsheng (FRPZS), we engineer rungs using advanced resin matrices to ensure every step in your facility is a secure one.
1. The Triple-Protection Advantage
Modern industrial environments—from saltwater offshore rigs to acidic chemical tanks—demand rungs that perform under multi-axis stress. Our custom FRP rungs deliver three critical layers of protection:
- Electrical Neutrality (Dielectric Safety): With a high dielectric strength, these rungs eliminate the risk of flashover in substations or during live-line utility work.
- Permanent Slip Resistance: We integrate specialized quartz grit or micro-grooved textures into the pultrusion process. Unlike adhesive tapes, our anti-slip surface is part of the structural matrix and will not peel off.
- Corrosion Immunity: Resistant to over 100 industrial chemicals, including H2SO4, HCl, and constant salt spray, ensuring the ladder’s integrity is never compromised by "hidden" internal rust.
2. 2026 Technical Specifications & Load Capacity
| Property | Zhongsheng FRP Rung (Premium) | Stainless Steel (316) |
|---|---|---|
| Density | 1.8 - 2.0 g/cm³ (Lightweight) | 8.0 g/cm³ (Heavy) |
| Conductivity | Non-Conductive (Insulator) | Highly Conductive |
| Slip Resistance (COF) | > 0.8 (Grit Surface) | < 0.4 (Smooth/Ribbed) |
| Tensile Strength | 350 - 550 MPa | 515 MPa |
| Life Expectancy | 50+ Years (Zero Maintenance) | 20-25 Years (Subject to pitting) |
3. Specialized Industrial Applications
I. Chemical & Wastewater Treatment
In tanks where moisture and corrosive gases are constant, GRP rungs prevent structural failure. Their low thermal conductivity also means they stay comfortable to the touch in extreme heat or sub-zero environments.
II. Power Utilities & Telecommunications
FRP is the only material that meets the non-conductive requirements for access ladders in high-voltage zones. Our rungs are tested for dielectric consistency to prevent arc tracking.
III. Marine & Offshore Platforms
Saltwater is the enemy of metal. FRP ladder rungs are immune to "salt-creep" and pitting, maintaining their safety rating on offshore rigs and coastal infrastructure without the need for periodic re-galvanizing.
4. Customization Options for 2026 Projects

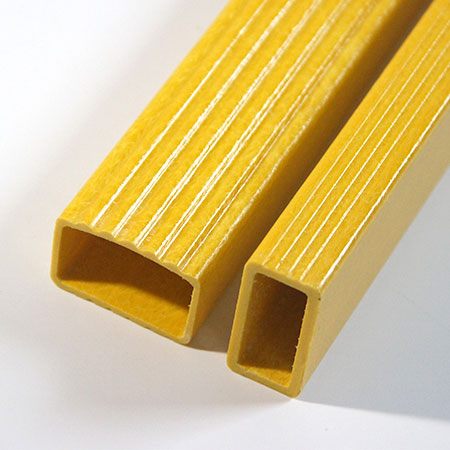

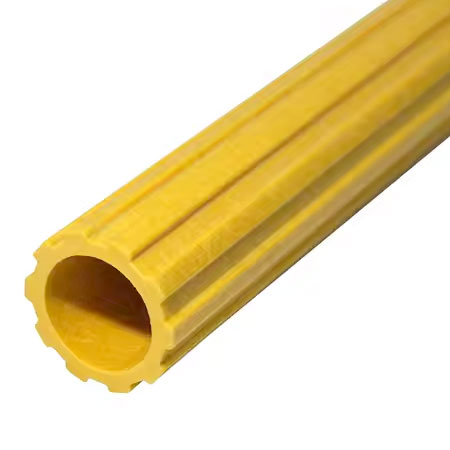

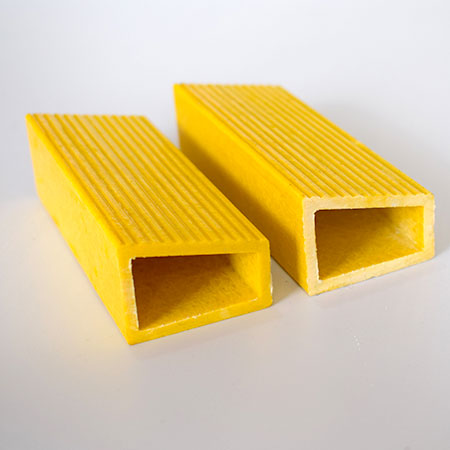

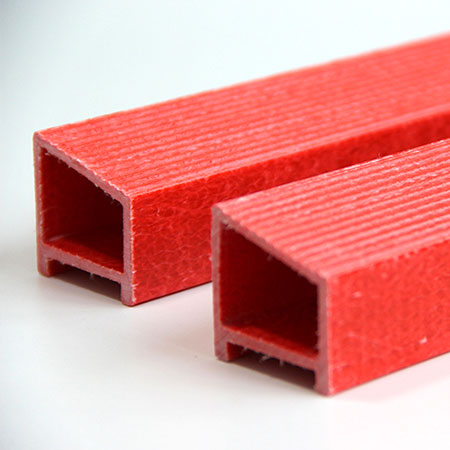

- Shape Profiles: Choose from round, square, or "dogbone" profiles depending on the ergonomic and load requirements of your ladder system.
- Resin Matrix: Polyester for general use, Vinyl Ester for extreme chemical exposure, or Phenolic for maximum fire resistance.
- High-Visibility Colors: Standard "Safety Yellow" for visibility, or custom colors to match corporate branding.
10 Professional FAQs: Optimizing Ladder Rung Selection
Q1: "Do FRP rungs meet OSHA load requirements?"
A: Yes. Our rungs are engineered to exceed the 250 lb (114 kg) concentrated load requirement, often supporting over 1,000 lbs in laboratory testing.
Q2: "What prevents the anti-slip grit from wearing off?"
A: We use a co-pultrusion process where the grit is embedded into the resin before it cures, making it a permanent part of the rung's surface.
Q3: "Can FRP rungs be used in sub-zero Arctic conditions?"
A: Unlike PVC, FRP does not become brittle in the cold. It maintains its impact strength down to -50°C.
Q4: "Are they fire-resistant for use in refineries?"
A: Yes, we can add flame retardants to meet ASTM E84 Class 1 or UL 94-V0 fire safety ratings.
Q5: "How are the rungs attached to the ladder side-rails?"
A: They are typically bonded with high-strength structural adhesive and then mechanically pinned for a redundant, fail-safe connection.
Q6: "Is the yellow color UV-stable?"
A: We use high-grade UV inhibitors and a protective surface veil to prevent "sun-bleaching" and ensure the safety color remains vibrant for decades.
Q7: "Which is better: Round or Square rungs?"
A: Round rungs are more ergonomic for gripping, while square or D-shaped rungs offer a larger surface area for foot stability. We offer both.
Q8: "Do these rungs require earthing or grounding?"
A: No. Because they are non-conductive, they do not require grounding, which simplifies installation in electrical substations.
Q9: "Can you provide custom lengths for wide industrial ladders?"
A: Absolutely. Our pultrusion process allows us to cut rungs to any length, from 300mm to over 2000mm for specialized access platforms.
Q10: "How do I clean them in a food-processing environment?"
A: FRP rungs can be high-pressure washed with industrial detergents. They are non-porous and do not harbor bacteria.
Secure Your Vertical Access Today
Don't compromise on industrial safety. Partner with Henan Zhongsheng Composite Materials Co., Ltd. for engineered FRP/GRP ladder rungs that stand the test of time. Led by Jessica Huang, our team provides technical support for global safety infrastructure.
