FRP Kick Plates: The Critical Safety Margin for Industrial Platforms
In the high-stakes environments of chemical plants, offshore rigs, and power substations in 2026, safety is measured in millimeters. FRP Kick Plates (also known as GRP Toe Plates) are essential safety profiles installed at the base of handrails and walkways to prevent tools, equipment, or debris from falling onto personnel below. Unlike corrosive steel alternatives, our pultruded fiberglass kick plates offer a permanent, maintenance-free solution that integrates seamlessly into modern modular structural systems.
1. Engineering Features & Material Advantages
At Henan Zhongsheng (FRPZS), our kick plates are manufactured using an advanced pultrusion process, ensuring high fiber density and consistent cross-sectional integrity. Their superiority over traditional materials is defined by:
- Structural Rigidity vs. Weight: While being 75% lighter than steel, our FRP kick plates maintain a tensile strength exceeding 300 MPa, allowing for long spans with minimal support.
- Total Corrosion Immunity: Designed to thrive in environments saturated with acids, alkalis, and salt spray where galvanized steel fails within years.
- Dielectric & Thermal Safety: Naturally non-conductive, these plates eliminate electrical grounding issues and reduce fire risks in high-voltage areas.
- UV Stability & Anti-Aging: Formulated with premium UV inhibitors and surfacing veils, our profiles will not crack, fade, or become brittle under intense direct sunlight.

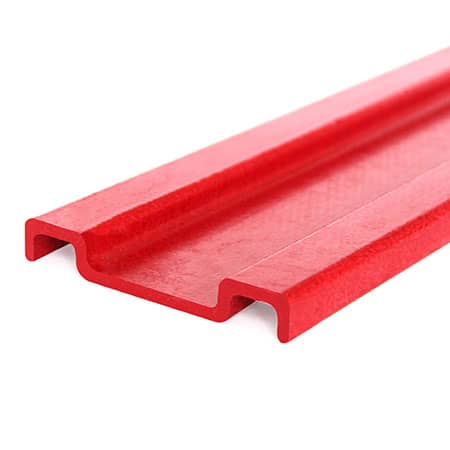

2. Profile Geometries: M-Shaped & W-Shaped Design
The "M" and "W" cross-sections are not merely aesthetic; they are engineered for structural stiffening. These shapes increase the moment of inertia, allowing the 3mm to 5mm thick material to resist significant lateral impacts without deforming.
Performance & Parameter Table
| Profile Shape | Width (mm) | Height (mm) | Thickness (mm) | Typical Application |
|---|---|---|---|---|
| M-shaped | 100 / 148 | 12 - 14 | 3.0 - 3.2 | Standard walkway handrails. |
| W-shaped | 100 | 14 - 19 | 3.2 - 5.0 | Heavy-duty impact zones. |
| Custom | Per Client | Per Client | Max 10mm | Specialized machinery guarding. |
Mechanical Properties (Tested to ASTM/ISO)
| Property | Value | Unit |
| Tensile Strength | > 300 | MPa |
| Flexural Strength | > 400 | MPa |
| Impact Strength | > 50 | KJ/m² |
| Density | 1.8 - 2.0 | g/cm³ |
3. Strategic Applications: Beyond Falling Objects
- Chemical Processing & Plating: Protecting dangerous degreasing or pickling tanks from accidental tool drops.
- Offshore & Marine: Non-rusting toe boards for oil rigs and shipboard walkways.
- Power Substations: Safety barriers around high-voltage equipment where metal conductivity is a hazard.
- Water Treatment: Lightweight, rot-proof edges for clarifier walkways and filter press platforms.
10 Professional FAQs: FRP Kick Plate Selection
Q1: "Do these kick plates comply with OSHA 1910.29 safety standards?"
A: Yes. Our 100mm and 148mm heights are specifically designed to meet and exceed OSHA requirements for falling object protection.
Q2: "What is the best way to install GRP toe plates onto existing metal gratings?"
A: We recommend using 316 stainless steel universal G-clips or bolt-through assemblies. They are fast to install and provide a secure, vibration-resistant fit.
Q3: "Can the kick plates be supplied in safety yellow?"
A: Safety Yellow is our standard stock color, but we can manufacture them in any RAL color to match your corporate branding or visibility needs.
Q4: "Are FRP kick plates fire-resistant?"
A: Yes, we offer formulations that meet UL94-V0 and ASTM E84 Class A fire rating standards for high-risk industrial environments.
Q5: "How do you handle thermal expansion in long outdoor runs?"
A: FRP has a low coefficient of thermal expansion, but for runs exceeding 10 meters, we recommend using slotted holes in your mounting clips to allow for minor movement.
Q6: "Can these be cut on-site?"
A: Absolutely. They can be cut with standard power saws using diamond or carbide-tipped blades. No "hot work" permits are required.
Q7: "Do the cut edges need to be sealed?"
A: For maximum longevity in highly corrosive environments, we recommend applying a simple resin seal to cut edges to prevent moisture wicking.
Q8: "What is the typical lifespan of these plates in a coastal environment?"
A: You can expect a service life of 25+ years without any painting or structural degradation.
Q9: "Can you manufacture a custom shape for a specific OEM machine guard?"
A: Yes. As a leading pultrusion manufacturer, we can design and build custom moulds for your specific profile requirements.
Q10: "How do FRP kick plates compare in cost to aluminum?"
A: While the upfront material cost is competitive, the "Total Cost of Ownership" for FRP is significantly lower due to zero maintenance, easier installation, and longer lifespan.
