FRP pultrusion mold

Fiberglass Reinforced Polymer (FRP) profiles are widely used in construction, automotive, electrical infrastructure, and industrial reinforcement applications due to their corrosion resistance, strength, and lightweight properties. A critical factor that determines the quality of FRP profiles is the precision and durability of the pultrusion molds used during production. At Zhongsheng Composite Technologies, we have developed a refined 12-step mold manufacturing process to ensure each pultrusion die meets the demands of high-volume, high-accuracy production environments.

Step-by-Step Pultrusion Mold Manufacturing Process

1. Raw Material Acceptance

High-grade steel blocks are received, inspected, and matched with corresponding mold IDs. Dimensions are checked to ensure the blank material meets tolerance and quality standards before processing begins.

2. Rough Milling

Initial shaping of the steel blank is done through rough milling. Workpiece width, machining allowance, and hardness are measured using calipers and hardness testers. This sets the base for precision machining steps.

3. Surface Grinding

Grinding refines the surface for flatness and alignment. Technicians check for height, width, flatness, and perpendicularity using micrometers and dial indicators to prepare for CNC precision work.

4. CNC Machining (Phase 1)

Key areas such as mold cavities and slot dimensions are milled using advanced CNC machines. Cavity depth and width are measured to ensure they match 3D mold design files, maintaining consistency in final FRP product dimensions.

5. Drilling Operations

Precision holes are drilled for lifting hooks, alignment bolts, and disassembly functions. Each position and hole quantity is verified against design specs for structural integrity and production safety.

6. Laser Heat Treatment

Laser hardening enhances wear resistance of mold surfaces. Post-treatment hardness is measured using Rockwell hardness testers to ensure values around 55 HRC, improving mold life during continuous pultrusion.

7. CNC Machining (Phase 2)

After heat treatment, final dimension tuning is performed. Rechecking of cavity and slot depth ensures thermal distortion hasn’t compromised the machining accuracy.

8. Precision Grinding

Another round of high-accuracy surface grinding ensures flatness and straightness across the mold. Operators perform trial mold closure (dry fit) to confirm the mold halves align perfectly and eliminate potential flash issues in production.

9. Polishing

The mold cavity is hand-polished or machine-polished depending on complexity. A smooth surface improves resin flow and release during pultrusion. Roughness is measured using a profilometer to ensure it falls within the designed micro-tolerance.

10. Hard Chrome Plating

A uniform chrome layer is applied to resist corrosion and extend mold life. Post-plating inspections check coating thickness and for any defects like edge peeling, cracks, or pitting using thickness gauges and visual tools.

11. Mold Assembly & Final Grinding

The mold is reassembled and carefully aligned. Final outer dimensions are trimmed as necessary to fit pultrusion machines. External surface appearance and mold markings are also inspected before approval.

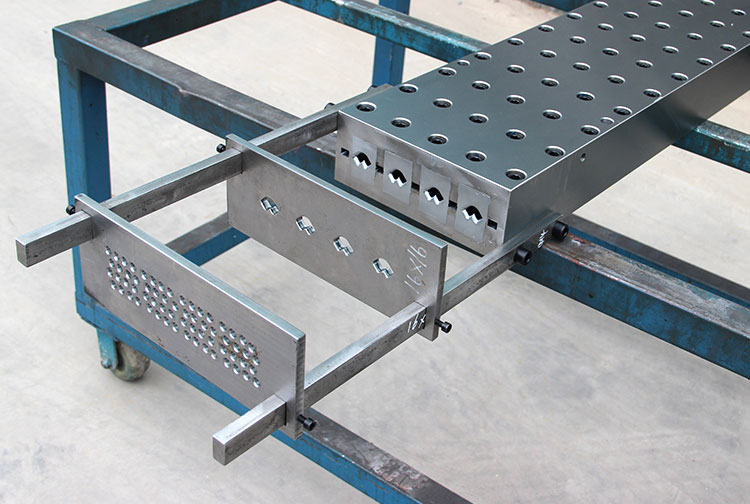

12. Preforming Unit Preparation

The preforming section (used for fiber arrangement before entering the mold) is tested. Inspectors ensure smooth fiber routing, hole quantity and location, and that no burrs or oxide remain that could snag fiber rovings during production.

Why This Process Matters

Each of these 12 steps ensures that pultrusion molds can operate continuously with minimal wear, provide consistent high-quality output, and reduce downtime for maintenance. By following this rigorous process, Zhongsheng ensures excellent mold durability, dimensional accuracy, and surface quality — all of which directly translate into better FRP profile performance in the field.

Applications of Our FRP Pultrusion Molds

Our molds are used worldwide in manufacturing fiberglass profiles such as cable trays, structural beams, ladder rails, window profiles, fencing, and rebar. Whether for large-scale infrastructure or custom industrial designs, we offer mold customization based on client-specific product geometry and production requirements.
