What are the disadvantages of steel sheet piles and what are the alternatives?

Dec / 13 / 2023
Disadvantages of Steel Sheet Piles:

While steel sheet piles offer numerous advantages, they are not without their drawbacks. Here are some of the key disadvantages:

1. Installation Challenges:

Difficult in rocky soils: Installing steel sheet piles in soils with large boulders or cobbles can be difficult and may require specialized equipment or pre-drilling.

Noise and vibration: Driving steel sheet piles can generate significant noise and vibration, which can be disruptive to nearby communities and environmentally sensitive areas.

Limited access: Installing sheet piles requires access to both sides of the excavation, which can be challenging in tight spaces or urban environments.

Safety concerns: Working with heavy machinery and driving sheet piles can be dangerous, requiring strict safety protocols and trained personnel.

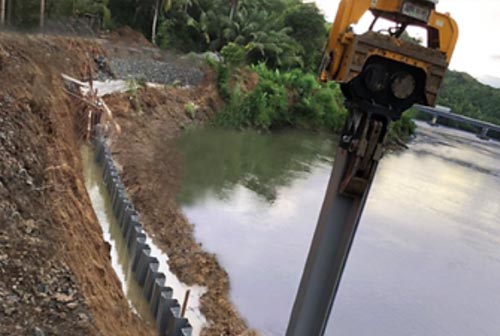

driving steel sheet piles

driving steel sheet piles

2. Environmental Impact:

Steel production: Manufacturing steel is energy-intensive and releases greenhouse gases, contributing to climate change.

Corrosion: While steel sheet piles are coated to resist corrosion, they can eventually rust and deteriorate, requiring costly maintenance or replacement.

Marine environments: Steel sheet piles may not be suitable for highly saline or corrosive marine environments without additional protection.

3. Design limitations:

Standard shapes: Sheet pile walls are constructed using prefabricated sections, which limits the available shapes and flexibility for complex designs.

Temporary structures: While some sheet pile walls can be permanent, they are often used as temporary structures, requiring removal and disposal at the end of their life cycle.

4. Cost:

Material and installation: Steel sheet piles are a relatively expensive material, and installation requires specialized equipment and personnel, further increasing the cost.

Maintenance: Corrugated steel sheet piles require regular maintenance to maintain their integrity and prevent corrosion, which can add to the overall cost.

Alternatives to Steel Sheet Piles:

Depending on the project requirements, several alternatives to steel sheet piles may be available:

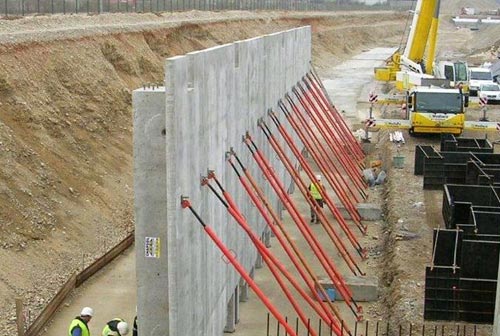

1. Concrete sheet piles:

Made from precast concrete sections, these piles are more durable and resistant to corrosion than steel.

They are also quieter to install and can be used in marine environments.

However, concrete sheet piles are heavier and more expensive than steel, and their installation can be more difficult.


concrete sheet piles

concrete sheet piles


2. Vinyl sheet piles:

Lightweight and flexible, vinyl sheet piles are a good option for temporary installations or where noise and vibration are a concern.

They are also resistant to corrosion and can be easily cut and shaped.

However, vinyl sheet piles are not as strong as steel or concrete and may not be suitable for demanding applications.


vinyl sheet piles

vinyl sheet piles

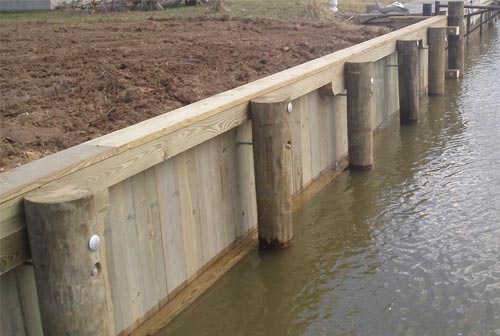

3. Timber sheet piles:

A more traditional option, timber sheet piles are a renewable and sustainable material.

They are also relatively inexpensive and can be easily cut and shaped.

However, timber sheet piles are susceptible to rot and decay and require regular maintenance.


timber sheet piles

timber sheet piles

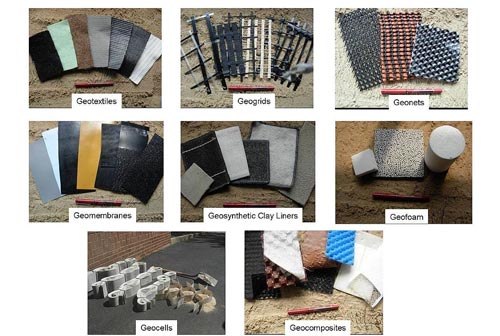

4. Geosynthetic materials:

Geotextiles and geomembranes can be used in conjunction with other materials, such as soil or gravel, to create retaining walls.

These materials are lightweight and flexible, making them easy to install and adapt to irregular shapes.

However, geosynthetic materials may not be suitable for deep excavations or high loading conditions.


geosynthetic materials

geosynthetic materials

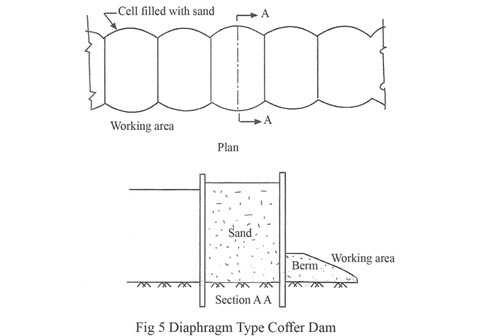

5. Cellular cofferdams:

These structures are made from interlocking panels that are filled with soil or other materials.

They are quick and easy to install and can be used in a variety of applications.

However, cellular cofferdams may not be as strong as other options and can be susceptible to damage from high water levels or strong currents.


cellular cofferdams

cellular cofferdams

The best alternative to steel sheet piles will depend on the specific project requirements, such as the site conditions, required strength and durability, budget, and environmental considerations. Consulting with a qualified engineer or geotechnical professional can help you determine the most appropriate solution for your project.
